Diamond Edge Polishing Machine

                                                Diamond Edge Polishing Machine

Diamond Edge Polishing Machine

The development of “Diamond edge polishing machine” by our company is a semi-automatic operation and high stability one that consists of jointer, polisher, grinder functions together. Hence working efficiency is enhanced from 2 – 3 times, saves production cost and loss, especially betters up the quality.

Description

Diamond Edge Polishing Machine Specifications

MODELSME-1000SME-1300SME-1600SME-2000
Length of cut1000mm1300mm1600mm2000mm
Width of cut600mm
Thickness of cut100mm
Working speed0~2 M/min
Spindle motor3HP
Spindle diametero28MM
Spindle speed (R.P.M.)0~10000 RPM
air cylinder(5kgf/cm2)6pcs8pcs10pcs12pcs
Table height from floor800mm
Net weight2200kgs2500kgs2800kgs3200kgs
Dimension
L x W x H (mm)
2150x1120x15502450x1120x15502750x1120x15502911x1190x1518
Power Source50HZ / 60HZ / 380V / 220V
LubricationThe machine is equipped with an automatic lubricator.
Cutter drive byServo Motor + Ball Screw + Linear Guide Ways
Machine surfacefully enclosed splash guard (see-thru window)
Dust hood outlet diametero4” (dust collector is optional)
Accessory1. Diamond Cutter x 1set  2. Pressure Guide Plate x 2set

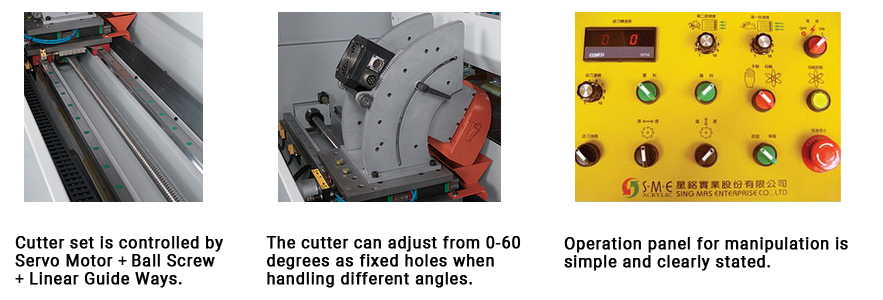

Diamond Edge Polishing Machine Features
