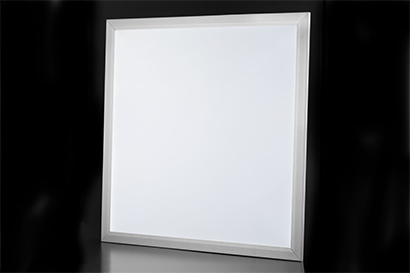

Panel Light SKD
Panel Lights SKD is the alternative choice for customers who just want to purchase LED panel light components separately from us. It includes light guide panel, diffuser sheet, and reflective film. Customers also have the flexibility to choose to buy LED lights and power supplies independently, which gives a significant duty advantage.
Description
SME supplies the excellent quality of diffuser sheet, light guide panel and reflective film, which are the three main components of LED panel light. Purchasing just the three components from us and getting LEDs from your local supplier will save a huge amount of duty for people who want to buy LED panel light.
Panel Light SKD Specifications
• Please also refer to the following video to see how to assemble the SKD:
Panel Light SKD Application

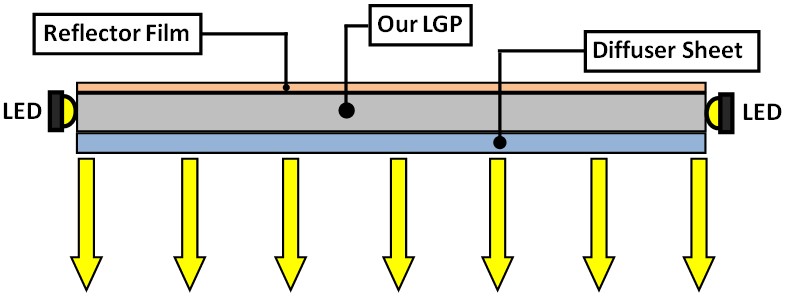

Please kindly refer to the below sketch map and have a better concept about how our SKD can assist you in reducing your cost significantly in manufacturing your own LED panel light.
Panel Light SKD Specifications
• Please also refer to the following video to see how to assemble the SKD:
Panel Light SKD Application
Customized Acrylic Processing Service
- Cutting: Cutting according to the size required by customers, the precision tolerance can reach ±0.5mm
- Polishing: Treat the acrylic surface with a diamond polishing machine to make it smooth and translucent.
- Drilling: Drilling according to customer's requirements, and it is matched with customer's sample kit.
- Bending: Bending according to customer's requirements, heating the acrylic tube, and then bending with jigs.
- Chamfering: The edge of the acrylic pipe is chamfered to reduce sharp edges.
- Printing: Print patterns, words or images onto the acrylic surface to achieve personalized decorative effects.
- Laser cutting: Using high-power laser beams for precise cutting can achieve diverse cutting needs.
- Assembly: process and assemble with the accessories required by customers to complete one continuous line service.
Not all acrylic specifications are available for the above
services, please inform us of your needs first, SMEACRYLIC will have a professional team to
evaluate for you.
About SMEACRYLIC®
- SMEACRYLIC® is a Taiwan based manufacturer which was founded in year 1980, a Professional Manufacturer in Extrusion Technology.
- We specializes in extruding various kinds of plastic Profiles, Tubes, Rods and Sheets which be used in displays, decorations, lighting, illuminated advertising, architectures and a lot more applications.
- Approximately 90% of our products are exported to over 40 countries worldwide including numerous well-known brands. Over the years, we have expanded to become the market leader in extrusion field in Asia.
QUALITY WE CARE
We insist on using 100% virgin materials.
We insist on using international branded raw materials (Sumipex, Mitsubishi, Evonik)
We insist on keeping sample records of raw materials, all raw materials are traceable.
Technical Service
SME is a customer driven company. Only
satisfied customer will ensure our
continued success. Buying goods from SME you can have a
comprehensive consulting service
package.
The following are some of the systems that we
implemented to provide our
customers with the excellent support and service.
- We developed on line catalogue for our customers.
- Stock system always offers efficient prompt delivery.
- Samples available for most of our products.
- Our home-made moulds offer fast and precision work to ensure customers' satisfaction.
- Efficient ISO-9001 managing system ensures quality stability.
Manufacturing Process
Raw material import
100% virgin material
Raw material inspection
Test raw material melt index
Pre-drying
Raw material drying, remove moisture
Extrusion
Shapes produced through different dies
Cooling
Cooling and shaping
Puller
Control extrusion speed
Cut to size
Cut according to the required length
Projection measure
Accurately measure via magnification
QC inspection
4 steps inspection applies during
extrusion
Packaging
Carton package to enhance product
protection
Warehousing
Instant warehousing, EPR control
Shipment
Well packed for delivery
Inspection Equipment
Non-contact Image Measure System
Equipped with a high-resolution and
high-precision color camera to
accurately measure the size through magnification.
Illumination Meter
Accurately measure illuminance, color
temperature, CRI, spectrogram, and
light measurement related data.
Calipers
We use Mitutoyo LCD vernier calipers from
Japan to ensure that the size
and tolerance requirements.
Melt Flow Indexer
To detect the Melt Index of raw materials
to ensure the quality and
stability of raw materials.
Moisture Analyzer
To quickly determine the free water
content of chemical raw material
samples.
Temperature & Humidity Test Chamber
Simulate the environment of high
temperature and high humidity to test the
material change and strength attenuation of our
products.
Production Equipment
Profile Extrusion Machines : 22 lines
7lines
Acrylic Rods
9lines
Acrylic Tubes
6lines
Other Profiles
3,500tons / yr
Production Capacity
Perfect Packaging
SMEACRYLIC® packaging advantages
- Exclusive shrink film packaging slows down the water absorption of acrylic
- Giving you a good cutting experience
- Effectively avoid scratches on acrylic tube surface during cutting
- Small tubes are bundled to increase the strength and are not easy to break
- Bubble Wrap protects the tubes druing transportation
- Carton protection, convenient for warehouse management
- Square package, maximizing the storage capacity of the warehouse
ISO-9001 : 2015 CERTIFIED
International Exhibition
Related FAQ
Introduction to LED diffuser sheet
Introduction to LED diffuser sheet An LED diffuser sheet is a component used in LED lighting systems to scatter and diffuse light emitted by the LED light source. The main purpose of the diffuser sheet is to evenly distribute and soften the light, reducing
glare and creating a more uniform illumination. Here's an overview of LED diffuser sheets: 1. Material: PS or PMMA or PS or MS. These materials are commonly used for LED diffuser sheets due to their transparency, durability, and ability to transmit light
effectively. They are also lightweight and resistant to yellowing over time. The material characteristics are compared in the following table. Characteristic PS PMMA PC MS Scientific Name Polystyrene Polymethyl Methacrylate Polycarbonate Polystyrene-Methyl
Methacrylate Transparency 80% 93% 80% 85% Impact Resistance Low to Moderate Moderate to High High Moderate to High Thermal Resistance 70~80℃ 70℃ 140℃ 80~100℃ Chemical Resistance Limited resistance to chemicals Moderate resistance to chemicals Resistant to
many chemicals Moderate resistance to chemicals UV Resistance Susceptible to UV degradation Good UV resistance Good UV resistance Moderate UV resistance Cost Economical Moderate cost Moderately Expensive Varies depending on the ratio of PS to PMMA Manufacturing
Process Easily molded and extruded Easily molded and extruded Injection Molding, Extrusion Typically involves blending PS and PMMA Applications Disposable items, packaging Optical lenses, signage, lighting Eyewear, automotive parts, bottles Various applications,
blends PS and PMMA 2. Design and Structure: The diffuser sheet is designed with a specific pattern or texture to scatter light evenly. Microstructures or prisms on the surface help in achieving the desired light diffusion. 3. Functionality: Diffusion:The
primary function is to scatter and distribute light, reducing the direct glare from the LED light source. Beam Control: Diffuser sheets can control the beam angle of the light emitted by the LEDs, ensuring a more even spread of light. Color temperature:In
LED products, an important specification number is color temperature, which is related to the color characteristics displayed by LED lighting products. The definition of color temperature: Light Source Color Temperature Range Typical Application Incandescent
2700K-3000K Residential lighting, ambient Halogen 3000K-3500K Accent lighting, task lighting Warm White LED 2700K-3000K General indoor lighting Neutral White LED 3500K-4000K Offices, commercial spaces Cool White LED 4000K-5000K Task lighting, kitchens, bathrooms
Daylight LED 5000K-6500K Reading lights, outdoor lighting 4. Types of Diffuser Sheets: Prismatic Diffusers: These have micro-prisms on the surface, which refract and scatter light in multiple directions. Frosted Diffusers: These have a frosted or matte surface
that helps in diffusing light and reducing glare. They provide a softer and more even light output. Lenticular Diffusers: These have a pattern of small lenses on the surface, directing light in specific directions and controlling the spread of light. 5. Installation:
The diffuser sheet is typically placed in front of the LED light source within the lighting fixture. It can be integrated into the design of the fixture or added as a separate layer. 6. Cleaning and Maintenance: Care should be taken during cleaning to avoid
scratching or damaging the diffuser surface, which could impact light transmission. Typically, a soft cloth and mild cleaning solutions are recommended. In conclusion, the LED diffuser sheet is a crucial component in LED lighting systems, designed to scatter
and distribute light emitted by LED sources. Typically made from materials like polycarbonate or acrylic, these diffuser sheets enhance the quality of illumination by reducing glare, creating uniform light distribution, and softening the overall lighting effect.
These diffuser panels find wide applications in various lighting fixtures, including LED panel lights, troffers, downlights, and more, contributing to improved aesthetics and visual comfort in both residential and commercial settings.
