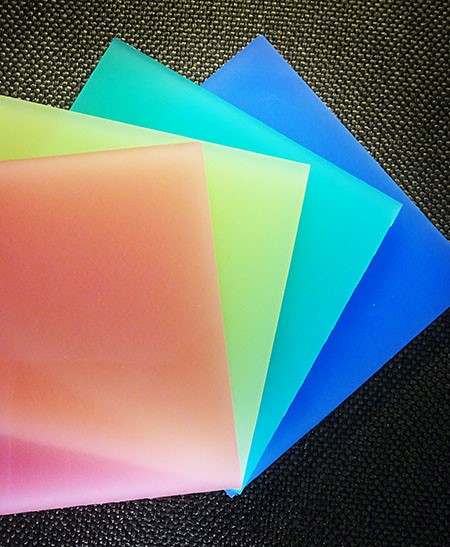

SME cast acrylic sheet is made by pure 100% MMA raw materials and made in Taiwan.

The principle is to inject acrylic liquid into a glass mold and form an acrylic cast plate after cooling. It has better transparency, chemical resistance, and high hardness.

Description

Cast Acrylic Sheet Specifications
• Thickness: 1.8mm~50mm
• Standard sizes:
  Q: 1220x1830mm
  L : 1220x2440mm
  P : 2000x3000mm
• Customized sizes can be discussed
• Protected with PE film or Brown masking paper on both sides

Cast Acrylic Sheet Features
• SME cast acrylic sheet is made by pure 100% MMA raw materials.
•
SME cast acrylic sheet is made in Taiwan.
• High Transparency
• Weather Resistance
• Thermoformability

Cast Acrylic Sheet Applications
• Advertising Billboards
• Lighting
• Architectural Decoration

Thickness/Weight Table of Acrylic Cast Sheet
Thickness
(mm)
1220x1830mm
Weight (kgs)
1220x2440mm
Weight (kgs)
2000x3000mm
Weight (kgs)
1.84.786.38--
2.05.317.08--
2.56.648.86--
2.77.179.56--
2.87.449.92--
3.07.9710.6321.42
3.59.312.424.99
3.79.8313.1126.42
3.810.113.4627.13
4.010.6314.1728.56
4.511.9615.9432.13
4.812.7517.0034.27
5.013.2817.7135.7
5.514.6119.4839.27
5.815.4120.5541.41
6.015.9421.2542.84
7.018.624.849.98
8.021.2528.3457.12
9.023.9131.8864.26
10.026.5735.4271.4
12.031.8842.5185.68
15.039.855314--
18.047.8263.76--
19.050.4867.31--
20.053.1470.85--
22.058.4577.93--
24.063.7685.02--
25.066.4288.56--
30.079.7106.27--
40.0106.27141.7--
45.0119.56159.41--
50.0132.84177.12--
About SMEACRYLIC®
  • SMEACRYLIC® is a Taiwan based manufacturer which was founded in year 1980, a Professional Manufacturer in Extrusion Technology.
  • We specializes in extruding various kinds of plastic Profiles, Tubes, Rods and Sheets which be used in displays, decorations, lighting, illuminated advertising, architectures and a lot more applications.
  • Approximately 90% of our products are exported to over 40 countries worldwide including numerous well-known brands. Over the years, we have expanded to become the market leader in extrusion field in Asia.
QUALITY WE CARE

We insist on using 100% virgin materials.

We insist on using international branded raw materials (Sumipex, Mitsubishi, Evonik)

We insist on keeping sample records of raw materials, all raw materials are traceable.

Technical Service
SME is a customer driven company. Only satisfied customer will ensure our continued success. Buying goods from SME you can have a comprehensive consulting service package.
The following are some of the systems that we implemented to provide our customers with the excellent support and service.
  • We developed on line catalogue for our customers.
  • Stock system always offers efficient prompt delivery.
  • Samples available for most of our products.
  • Our home-made moulds offer fast and precision work to ensure customers' satisfaction.
  • Efficient ISO-9001 managing system ensures quality stability.
Manufacturing Process
Raw material import
100% virgin material
Raw material inspection
Test raw material melt index
Pre-drying
Raw material drying, remove moisture
Extrusion
Shapes produced through different dies
Cooling
Cooling and shaping
Puller
Control extrusion speed
Cut to size
Cut according to the required length
Projection measure
Accurately measure via magnification
QC inspection
4 steps inspection applies during extrusion
Packaging
Carton package to enhance product protection
Warehousing
Instant warehousing, EPR control
Shipment
Well packed for delivery
Inspection Equipment
Non-contact Image Measure System
Equipped with a high-resolution and high-precision color camera to accurately measure the size through magnification.
Illumination Meter
Accurately measure illuminance, color temperature, CRI, spectrogram, and light measurement related data.
Calipers
We use Mitutoyo LCD vernier calipers from Japan to ensure that the size and tolerance requirements.
Melt Flow Indexer
To detect the Melt Index of raw materials to ensure the quality and stability of raw materials.
Moisture Analyzer
To quickly determine the free water content of chemical raw material samples.
Temperature & Humidity Test Chamber
Simulate the environment of high temperature and high humidity to test the material change and strength attenuation of our products.
Production Equipment
Profile Extrusion Machines : 22 lines
7lines
Acrylic Rods
9lines
Acrylic Tubes
6lines
Other Profiles
3,500tons / yr
Production Capacity
Perfect Packaging
SMEACRYLIC® packaging advantages
  • Exclusive shrink film packaging slows down the water absorption of acrylic
  • Giving you a good cutting experience
  • Effectively avoid scratches on acrylic tube surface during cutting
  • Small tubes are bundled to increase the strength and are not easy to break
  • Bubble Wrap protects the tubes druing transportation
  • Carton protection, convenient for warehouse management
  • Square package, maximizing the storage capacity of the warehouse
ISO-9001 : 2015 CERTIFIED
