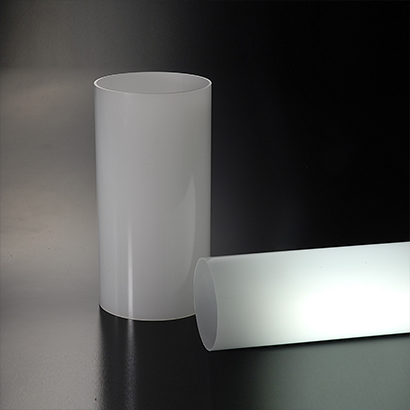

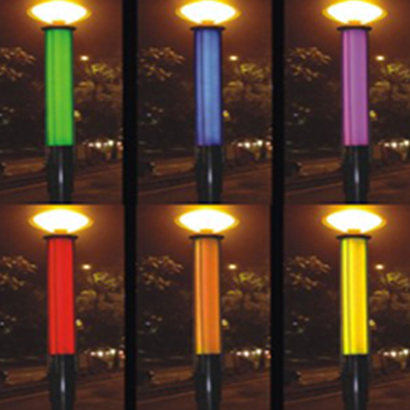

Diffused opal Tube (Acrylic/PC) features excellent optical performance, effectively diffusing light to create a softer illumination and an elegant lighting effect. This type of tubing is not only suitable for lampshades but is also widely used in various lighting designs. Many street lamps in Taiwan utilize SMEACRYLIC's diffused opal tubes, showcasing their significance and widespread application in public lighting.

Description

Diffused Opal Tube Specifications
• Standard length 2000mm.
• Be able to customize a variety of sizes.
• We can provide in Acrylic and Polycarbonate.

MaterialOutter Dia.
(mm)
Inner Dia.
(mm)
Thickness
(mm)
Outter Dia.
Tolerance
Length
(mm)
Acrylic80743± 0.602000
100943± 0.802000
1201143± 1.002000
1501443± 1.202000
2001924± 2.002000
2502424± 2.502000
Polycarbonate50462± 0.402000
80743± 0.602000
100943± 0.802000
1201143± 1.002000
1501443± 1.202000
2001943± 2.002000



Diffused Opal Tube Features
• Our diffused opal tube has an excellent light evenness due to its material.

• It balances ratio of light diffusion and transmittance.

Diffused Opal Tube Attention
• Do not coexist with other organic solvents, let alone expose them to organic solvents.
• Cannot be used at temperatures above 85 degrees Celsius.

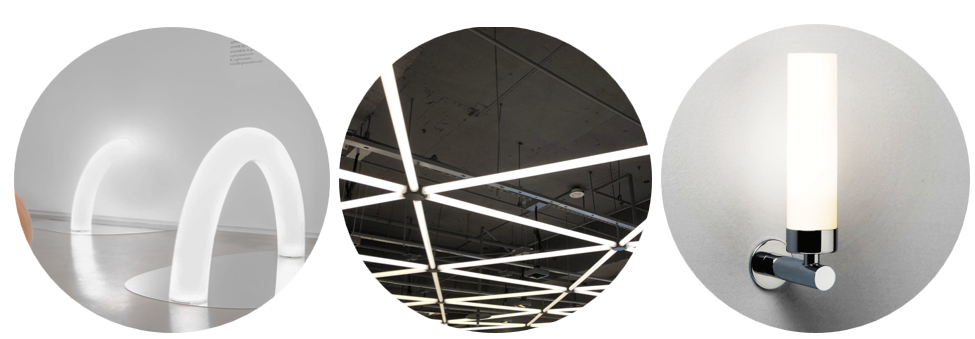

Diffused Opal Tube Application
• Installation of artwork
•
lampshade



Related Applications

Beer Tube Application
Beer Tube Application
Acrylic beer tubes are often used at banquets, parties and events, and their transparency allows patrons to appreciate the color and foam of the beer while providing a unique way to drink.
Kaleidoscope Application
Kaleidoscope Application
Take the kaleidoscope, for example, which often provides children and adults with a wonderful visual experience, allowing people to enjoy the changes in colors and patterns. In addition, it can also demonstrate the characteristics of light and teach students about the principles of light refraction and reflection.
Interior Design Applications
Interior Design Applications
In interior design, acrylic materials have transparency and modernity and create unique spaces. They can divide the space into different areas while maintaining a sense of transparency, adding layering and design highlights to the space.
Backlight Box Application
Backlight Box Application
Acrylic tube rods can also be used in backlight boxes. The backlight box is a common advertising display design. An LED light source is placed inside, and the light is guided through an acrylic tube rod to make the entire light box shine evenly. This lighting application is very popular in commercial displays, billboards, and more.
LED Light Application
LED Light Application
By placing the LED light strip inside the acrylic tube rod, the light will be refracted and reflected multiple times inside the acrylic tube rod, making the light scatter more evenly on the entire surface of the acrylic tube rod, thereby creating a Soft and even lighting effect.
Furniture Applications
Furniture Applications
Acrylic sticks can also serve many creative and practical purposes. Due to the transparency and sturdiness of acrylic rods, it can bring a unique visual effect and modern feel in furniture design. In addition, combining acrylic rods with other materials, such as metal, wood, etc., can also create more rich and diverse design effects. Whether it’s modern, minimalist or otherwise, acrylic rods make a great addition to furniture designs.
Customized Acrylic Processing Service
  • Cutting:  Cutting according to the size required by customers, the precision tolerance can reach ±0.5mm
  • Polishing:  Treat the acrylic surface with a diamond polishing machine to make it smooth and translucent.
  • Drilling:  Drilling according to customer's requirements, and it is matched with customer's sample kit.
  • Bending:  Bending according to customer's requirements, heating the acrylic tube, and then bending with jigs.
  • Chamfering:  The edge of the acrylic pipe is chamfered to reduce sharp edges.
  • Printing:  Print patterns, words or images onto the acrylic surface to achieve personalized decorative effects.
  • Laser cutting:  Using high-power laser beams for precise cutting can achieve diverse cutting needs.
  • Assembly:  process and assemble with the accessories required by customers to complete one continuous line service.
Not all acrylic specifications are available for the above services, please inform us of your needs first, SMEACRYLIC will have a professional team to evaluate for you.
About SMEACRYLIC®
  • SMEACRYLIC® is a Taiwan based manufacturer which was founded in year 1980, a Professional Manufacturer in Extrusion Technology.
  • We specializes in extruding various kinds of plastic Profiles, Tubes, Rods and Sheets which be used in displays, decorations, lighting, illuminated advertising, architectures and a lot more applications.
  • Approximately 90% of our products are exported to over 40 countries worldwide including numerous well-known brands. Over the years, we have expanded to become the market leader in extrusion field in Asia.
QUALITY WE CARE

We insist on using 100% virgin materials.

We insist on using international branded raw materials (Sumipex, Mitsubishi, Evonik)

We insist on keeping sample records of raw materials, all raw materials are traceable.

Technical Service
SME is a customer driven company. Only satisfied customer will ensure our continued success. Buying goods from SME you can have a comprehensive consulting service package.
The following are some of the systems that we implemented to provide our customers with the excellent support and service.
  • We developed on line catalogue for our customers.
  • Stock system always offers efficient prompt delivery.
  • Samples available for most of our products.
  • Our home-made moulds offer fast and precision work to ensure customers' satisfaction.
  • Efficient ISO-9001 managing system ensures quality stability.
Manufacturing Process
Raw material import
100% virgin material
Raw material inspection
Test raw material melt index
Pre-drying
Raw material drying, remove moisture
Extrusion
Shapes produced through different dies
Cooling
Cooling and shaping
Puller
Control extrusion speed
Cut to size
Cut according to the required length
Projection measure
Accurately measure via magnification
QC inspection
4 steps inspection applies during extrusion
Packaging
Carton package to enhance product protection
Warehousing
Instant warehousing, EPR control
Shipment
Well packed for delivery
Inspection Equipment
Non-contact Image Measure System
Equipped with a high-resolution and high-precision color camera to accurately measure the size through magnification.
Illumination Meter
Accurately measure illuminance, color temperature, CRI, spectrogram, and light measurement related data.
Calipers
We use Mitutoyo LCD vernier calipers from Japan to ensure that the size and tolerance requirements.
Melt Flow Indexer
To detect the Melt Index of raw materials to ensure the quality and stability of raw materials.
Moisture Analyzer
To quickly determine the free water content of chemical raw material samples.
Temperature & Humidity Test Chamber
Simulate the environment of high temperature and high humidity to test the material change and strength attenuation of our products.
Production Equipment
Profile Extrusion Machines : 22 lines
7lines
Acrylic Rods
9lines
Acrylic Tubes
6lines
Other Profiles
3,500tons / yr
Production Capacity
Perfect Packaging
SMEACRYLIC® packaging advantages
  • Exclusive shrink film packaging slows down the water absorption of acrylic
  • Giving you a good cutting experience
  • Effectively avoid scratches on acrylic tube surface during cutting
  • Small tubes are bundled to increase the strength and are not easy to break
  • Bubble Wrap protects the tubes druing transportation
  • Carton protection, convenient for warehouse management
  • Square package, maximizing the storage capacity of the warehouse
